*****Please read****
THIS IS FOR THE FRONT 4 LINK MOUNT AND MOUNTING HARDWARE ONLY! Truck and other accessories not included.
***THIS 4 LINK MOUNT IS TO REMOVE THE PANHARD, TRIANGULATE THE UPPER LINKS AND RELOCATE THE SERVO TO THE AXLE FOR BEST PERFORMANCE OF THE CEN F450. THIS IS NOT INTENDED TO BE USED WITH A CHASSIS MOUNTED SERVO AND/OR A PANHARD.
NOTES:
1) DO NOT USE WITH A PANHARD LINK AS YOU WILL BE CREATING A 5 LINK AND CAN CAUSE BINDING IN YOUR SUSPENSION, LIMITING TRAVEL.
2) You will need 2 front upper link mounts to accomodate your personal truck height. (SEE BELOW)
3) Link lengths can differ significantly as the lengths are determined by your suspension height/or lift. A good starting point is to use the STOCK PANHARD BARS you remove from the front and rear (if you 4linked the rear) from CEN Racing. This was designed to use these links since you already have them. You may need to adjust the length depending on suspension height, but these are typically close for most lifted trucks as long as your link angles are similar to the stock angle such as using the SHAKA HOBBIES, CNC and H-Tech lift kits. Other kits or home brew lifts may require very different lengths if you do not keep the links at a similar angle to stock. You can use shorter or longer link ends for minor adjustments if it is close. Or you will need to make new links if more adjustment is needed.

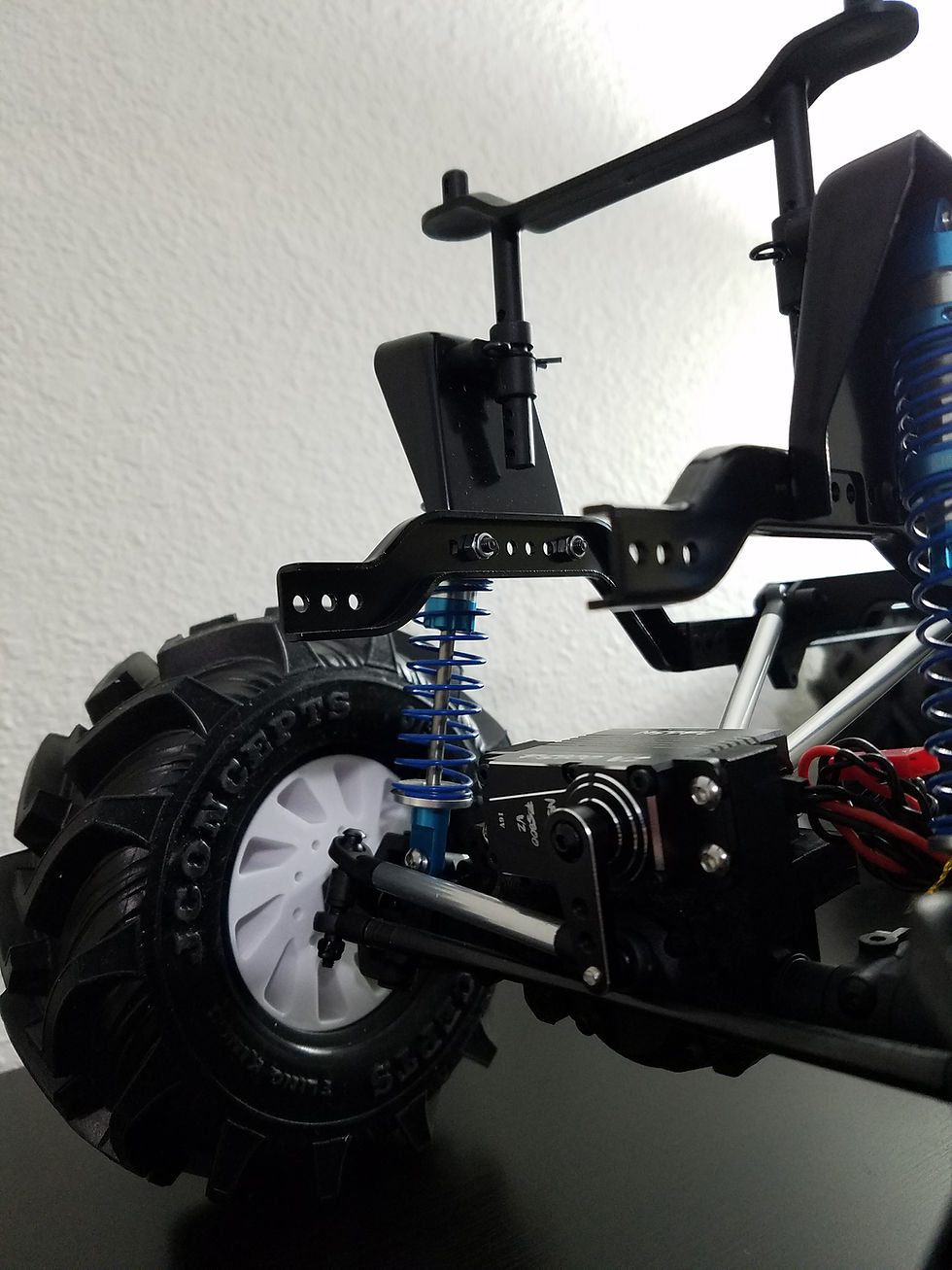

These are a 3 piece servo/4link mount secured using included m3 SS hardware that "clamp" around and mount to the axle. This is as compact as we could get it. We have our servo of choice, an NSDRC RS800 V2 installed but will fit standard size servos as well. You will need a max of 20mm servo horn to avoid collision with tierod. Again this is compact!
Last photo shows assembly of hardware and parts. Red is the front piece with 4 12mm servo screws up top and 4 20mm screws on bottom. These screws thread through both the existing housing holes and into the second green piece. The 6mm screw attaches the green section to the housing from the top. Lastly, the 3 30mm screws are used in the rear yellow section and thread through into the red section and the last screw mounts the links. When attaching sections together make sure to squeeze them tight as you are threading the red and green AS WELL AS THE housing together. Let me know if you have any questions.
